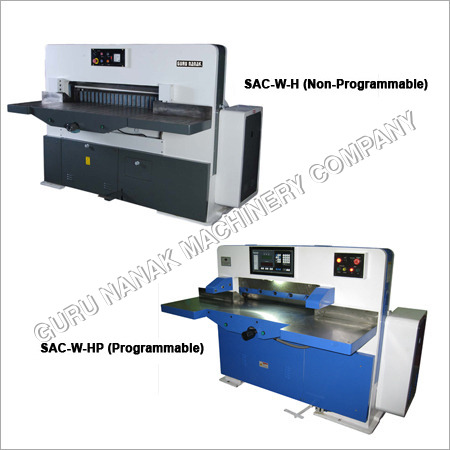

Automatic Paper Cutting Machine

Automatic Paper Cutting Machine
Automatic Paper Cutting Machine
Product Code : GNMC-17
Brand Name : GNMC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cheque, Others
  • Packaging Details
  • Wooden Packaging
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015
Product Description

We are a prestigious manufacturer, exporter and supplier of Automatic Paper Cutting Machine to our highly esteemed clients. It is made up of premium grade raw material and sophisticated technology and machinery in programmable and non programmable designs. Automatic Paper Cutting Machine can be adjusted for various pressures to suit different kinds of stocks. Electro- magnetic clutch requires little maintenance, oil leakage as in hydraulic clutches do not occur. This has gained us huge appreciation from our clients in both national and international markets.



Standard Features:

  • Heavy Duty Electro-magnetic clutch and brake is provided for quick engagement and disengagement of knife.
  • Infra red photo-cell device is provided for safety.
  • This is installed by our veteran experts with safety devices.
  • It is further provided with extended side tables.
  • Power operated back gaguge for forward and backward movement.
  • High standard of operational safety devices are provided.
  • Two hand push button operation for the safety of operator.
  • A hand wheel mechanism is provided for fine equipment.
  • Cladded steel knives
  • False Clamp Plate

 Optional Features:

  • S.S. Plate on front table
  • Programmable control
  • Air cushion table

Sizes & Technical Specifications (Model SAC-HY)

Size

36" (920mm)

43" (1092mm)

Maximum Cutting Width

36" (920mm)

43" (1092mm)

Minimum Cutting Width

7/8" (22mm)

1" (25mm)

Maximum Cutting Height

4.5" (114mm)

5"(127mm)

Power required

3.5kw

4.1 kw

Knife thickness

3/8"

0.5"

Table Height

35"

35"

 Fully Automatic Paper Cutting Machines (Model: FAC)

Standard Features

  • Self Clamping (Spring Loaded Mechanism) is provided for auto clamping of stocks during cutting process.
  • Heavy Duty Electro-magnetic clutch and brake is provided for quick engagement and disengagement of knife.
  • High standard of operational safety devices are provided.
  • Two hand push button operation for the safety of operator.
  • Infra red photo-cell device is provided for safety.
  • Extended side tables are provided for stocks in progress.
  • Power operated back gaguge for forward and backward movement
  • A hand wheel mechanism is provided for fine equipment.
  • Cladded steel knives
  • False Clamp Plate

  Optional Features:

  • S.S. Plate on front table
  • Air cushion table

Sizes and Technical Specifications (Model FAC)

Size

43" (1092mm)

52" (1320mm)

Maximum Cutting Width

43" (1092mm)

52" (1320mm)

Minimum Cutting Width

1" (25mm)

1" (25mm)

Maximum Cutting Height

5" (127mm)

5"(127mm)

Power required

4.1 kw

6.4 kw

Cutting Speed

30/min.

28/min.

Floor Space

85x85"

95x95"

STANDARD FEATURES

  • Latest Hydraulic clamping device is provided which can be adjusted for various pressures to suit different kinds of stocks.
  • Electro magnetic clutch requires little maintenance, oil leakage as in Hydraulic Clutches do not occur.
  • Air table on ground.
  • Safety barrier are permanently monitoring the cutting machine front table. The safety barrier operates fully electrically and is maintained free.
  • Safety of operator: cut release by two hand safety engagement. The downward movement of knife is immediately stopped when one of the cut-button is released.
  • High standard of operational safety devices are provided.
  • Extended side tables gauge for forward and backward movement.
  • A hand wheel me chanism is provided for fine adjustment.
  • Cladded Steel Knives.
  • False Clamp Plate.
  • S.S Sheet on front of table.

Size and Technical Specifications

Size

26”(660mm)

33”(838mm)

36”(920mm)

43” (1092mm)

Maximum Cutting Width

26”(660mm)

33”(838mm)

36”(920mm)

43” (1092mm)

Maximum Cutting Width

5/8” (16mm)

3/4” (20mm)

7/8” (22mm)

1” (25mm)

Maximum Cuting Height

4”(100mm)

4 1/2”(114mm)

4 1/2” (114mm)

5” (127mm)

Power Required

3 KW

4.4 KW

4.4 KW

4.4 KW

Knife Thickness

3/8”

3/8”

3/8”

1/2”

Table Height

35”

35”

35”

35”

Clamp Pressure (Max)

2000 Kg.

2500 Kg.

3000 Kg.

3500 Kg.

Clamp Pressure (Min)

400 Kg.

425 Kg.

450 Kg.

450 Kg.
