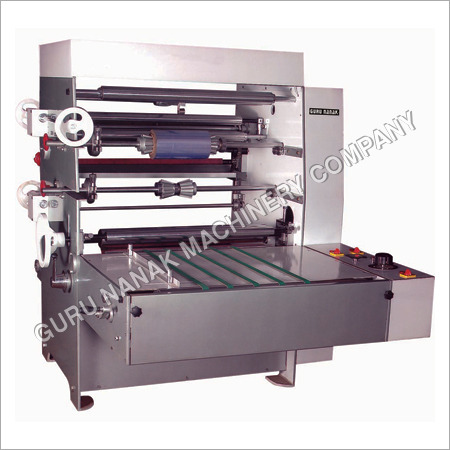

Film Lamination Machine

Film Lamination Machine
Film Lamination Machine
Product Code : GNMC-20
Brand Name : GNMC
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cheque, Others
  • Packaging Details
  • Wooden Packaging
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015
Product Description



Film Lamination Machine which we export, supply and manufacture is designed to meet the requirements of film lamination jobs on posters, greeting cards, book titles, card board cartons, folding boxes, etc. It is fabricated using best quality raw material and latest technology and machinery at our unit as per the set industrial norms and standards. We have gained huge appreciation from our clients for high performance, efficiency, durability and corrosion resistance of our Film Lamination Machine. Clients can avail it from us at highly competitive prices.

Technical specifications:

Max. Laminating Width

24"

30"

40"

Max. Roller Width

26"

32"

42"

Auto Cutting

X

X

X

Speed

0-400 mt/hr

0-400 mt/hr

0-375 mt/hr

Max. Film Roll Width

24"

30"

40"

Max Film Roll Diameter

12"

12"

12"

Floor Space LxBxH

70"x52"x70"

70"x58"x70"

70"x68"x70"

Weight Apx (with packing)

700 kg

800 kg

1100 kg

Power Required

Heater 3 Kw + 2 Hp D.C. Motor

Heater 3 Kw + 2 Hp D.C. Motor

Heater 4.5 Kw + 5 HP D.C. motor

Digital Heat Controller

Standard Feature

Standard Feature

Standard Feature

Technical specifications:

Max. Laminating Width

24"

30"

36"

40"

Max. Roller Width

26"

32"

38"

42"

Speed

0-600 mt/hr

0-550 mt/hr

0-500 mt/hr

0-500mt/hr

Max. Film Roll Width

24"

30"

36"

40"

Max Film Roll Diameter

12"

12"

12"

12"

Floor Space LxBxH

63x50x60"

70x56x60"

76x60x60"

82x66x60"

Weight Apx (with packing)

1000 kg

1400 kg

1600 kg

1800 kg

Power Required

0.8 KW

1.2 KW

1.5 KW

1.5 KW

Note: We also offer Window cum Plain Film Laminating Machine.

SALIENT FEATURES:

  • Provision for Roll to Roll Lamination
  • Extended Feeding table
  • Variable Speed Attachment
  • Wrinkle free film Lamination
  • Machine is also suitable for strip lamination
  • Hard Chrome Rollers

Sizes and Technical Specifications

Maximum Roller Width

26” (660mm)

32(812mm)

38 (965mm)

42”(1065mm)

Max. Laminating Width

24”(610mm)

30”(760mm)

36”(915mm)

40”(1065mm)

Speed

0-600 mt./Hr

0-550 mt./Hr

0-500 mt./Hr

0-500 mt./Hr

Max. Film Roll Width

610 mm

760 mm

915 mm

1065 mm

Ma. Film Roll Diameter

305 mm

305 mm

305 mm

305 mm

Floor Space LxBxH (mm)

1600x1270x1525

1780x1425x1525

1930x1525x1525

2085x1680x1525

Weight Apx

1000 Kg

1400 Kg

1600 Kg

1800 Kg

Power Req. 220V D.C. Motor

0.8 KW

1.2 KW

1.5 KW

1.5 KW
